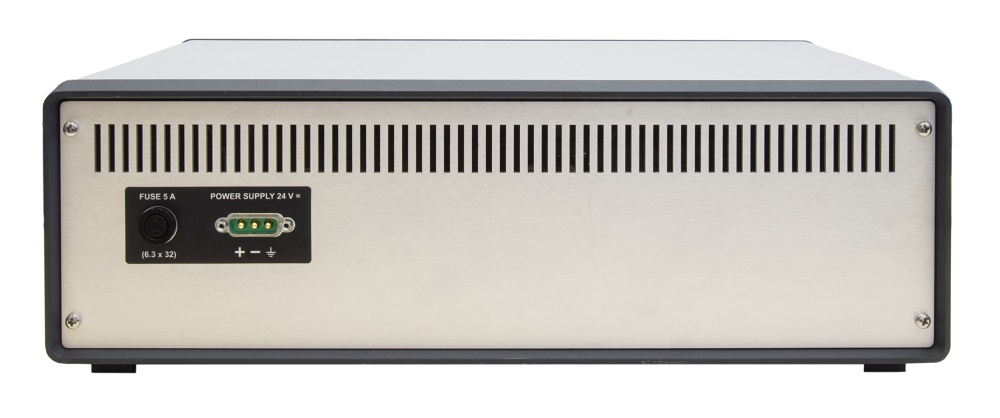

Click on the image to enlarge

Atenix's product

ATX-A077

Radar simulator for level crossing Control Unit test support
Product Name ATX-A077-SIM-01-0
Form Factor 19″ 3U Electronic case
Dimension Length x Width: 471.00 x 271.00 mm – Height: 147.10 mm
Rapid description Radar simulator for ATX-K077 test support
Processor 4x CPU modules based on the Single core ARM® Cortex™ A9— i.MX 6SoloX®— up to 800 MHZ
External Ports 8x Optoisolated RS-485 Half-Duplex channels with Synchronous clock for Radar controls – 3x Relay 24V Outputs – 3x 24V Inputs – 4x Ethernet channels @ 10Base-T and 100Base-TX for debug and configuration system
Envinronment -10ºC ÷ +50ºC
IP Grade IP 20
Power Supply +16.8 Vdc ÷ +36 Vdc
Basic Software Linux S.O. with graphic user interface through the ethernet ports
Compliance Not Applicable
Safety SIL 0
