Atenix's product

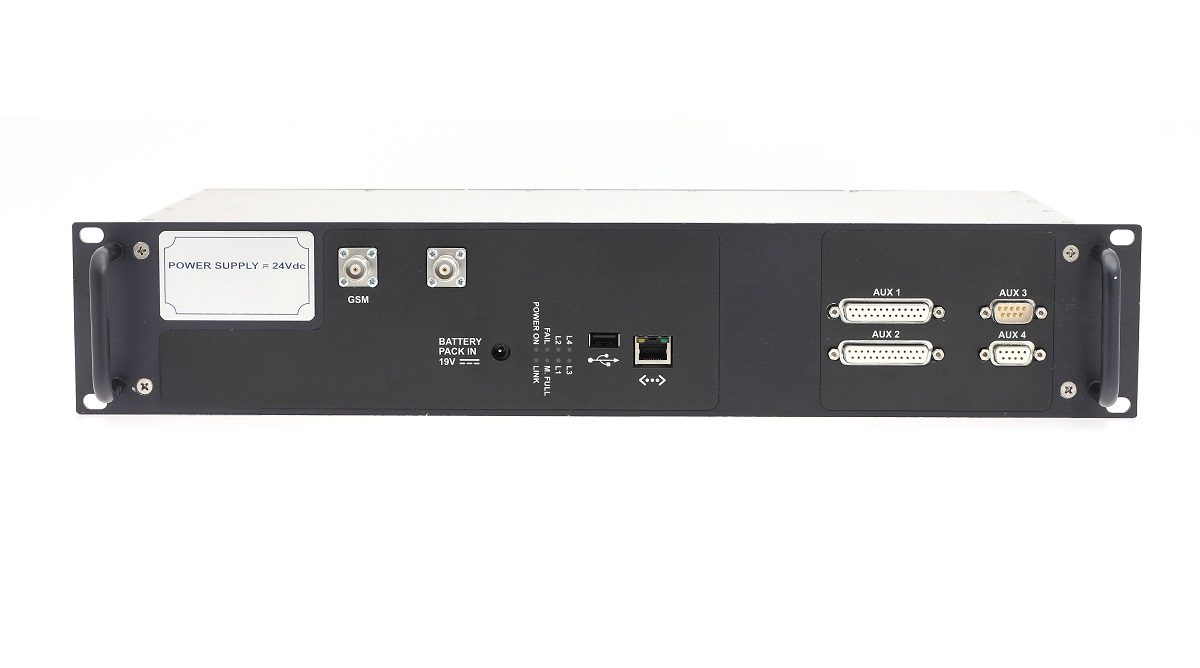

ATX-K043

4G/LTE Datalogger System
Product Name ATX-K043-DLG-05-0
Form Factor 2HE/19” stainless steel Rack
Dimension Base dimensions: 434 mm x 219 mm x 85.10 mm – Front panel dimensions: 482.60 mm x 88.10 mm and thickness: 3 mm – Depth handles: 40 mm – Rear panel thickness: 2.5 mm
Rapid description 4G/LTE Datalogger System
Processor 32 bit MCF5485 V4 Coldfire core up to 200 MHZ
Internal Ports 32 bit 32 MByte SDRAM memory – 16 bit 32 Mbyte Boot Flash memory – 16 bit 32 Mbyte User Flash memory – RTC device with backup functions – Digital Temperature sensor – 32 GB Nand Flash module – Internal Rechargeable Battery Pack for Shutdown equipment for 15 minutes maximum – FPGA custom interfaces
External Ports 1x Debug Ethernet 10BaseT and 100Base-TX channel – 1x USB type Host 2.0 – 2x EMD isolated MVB bus interfaces compliant to the IEC 61375 TCN standard – 3x Ethernet 10BaseT and 100Base-TX interfaces – 1x RS-232 optocoupled channel (TX/RX) – 5x RS-232 optocoupled channels (RX only) – 4x CAN bus optocoupled channels – 2x RS-422 optocoupled channels (RX only) – 2G/3G/4G/LTE Radio module – SIM socket –  1x BACC interface – 1x ODO interface
Envinronment OT3 class
IP Grade IP 20
Power Supply +16.8 Vdc ÷ +36 Vdc (S2 class) – Alternative Battery Pack: +19 Vdc (nominal voltage)/ 3 A, +15 Vdc minimum
Basic Software MQX Operating System 2.50 – TCP/IP and UDP communication protocols – Library TCN
Compliance EN 50155:2017
Safety SIL 0
