Atenix's product

ATX-K042

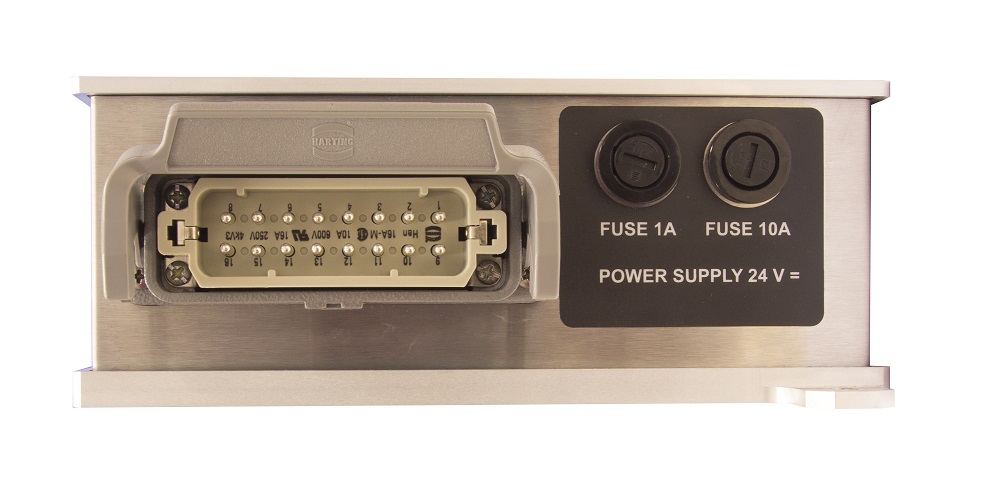

Door Control Unit for ALSTOM ETI 400 trains
Product Name ATX-K042-DCU-01-0
Form Factor Custom
Dimension Front Width max. 327.0 mm – Front Thickness max. 1 mm – Base/Lid Width max. 334.0 mm – Base/Lid Width + L/R Brackets max. 380.0 mm – Depth max. 185.0 mm – Depth + Bracket max. 208.0 mm – Panel Height max. 63.0 mm – Overall Height (Base + Panels + Lid) max. 75 mm
Rapid description Door Control Unit for ALSTOM ETI 400 trains
Processor 8-Bit Cmos Flash PIC16F887-I/PT Microcontroller @ 20 MHZ
Internal Ports 368 bytes Sram on chip – 8 K Flash memory (14 bit words on chip) – 256 bytes EEPROM on chip – 10 bit multichannel A/D converter – 1x USART channel
External Ports 1x Analog input to measure motor current – 2x Input Encoder Channels – 7x Relays output – 14x nominal 24 VdcDigital Inputs – 1x safety Relay for motor control  – 1x RS-232 debug channel – 22x panel leds
Envinronment T3 class
IP Grade IP 4X
Power Supply +16.8 Vdc ÷ +36 Vdc (S2 class)
Basic Software Custom firmware
Compliance EN 50155:2007
Safety SIL 2
