Atenix's product

ATX-K065 8″

Safety MMI - Man Machine Safety Interface System - ETCS - ERTMS 8"
Product Name ATX-K065-MMI-42-0
Form Factor Custom with Portrait orientation
Dimension Front dimensions: 150×240 mm – Depth with plug less 100 mm – Front panel depth: 8 mm
Rapid description Safety MMI – Man Machine Safety Interface System – ETCS – ERTMS
Processor 2oo2 Safety Architecture – ™ i.MX6®—Quad ARM® Cortex™-A9 up to 1.0 GHZ (section #1) – Cyclone V SoC—Dual ARM® Cortex™-A9 up to 800 MHZ (section #2)

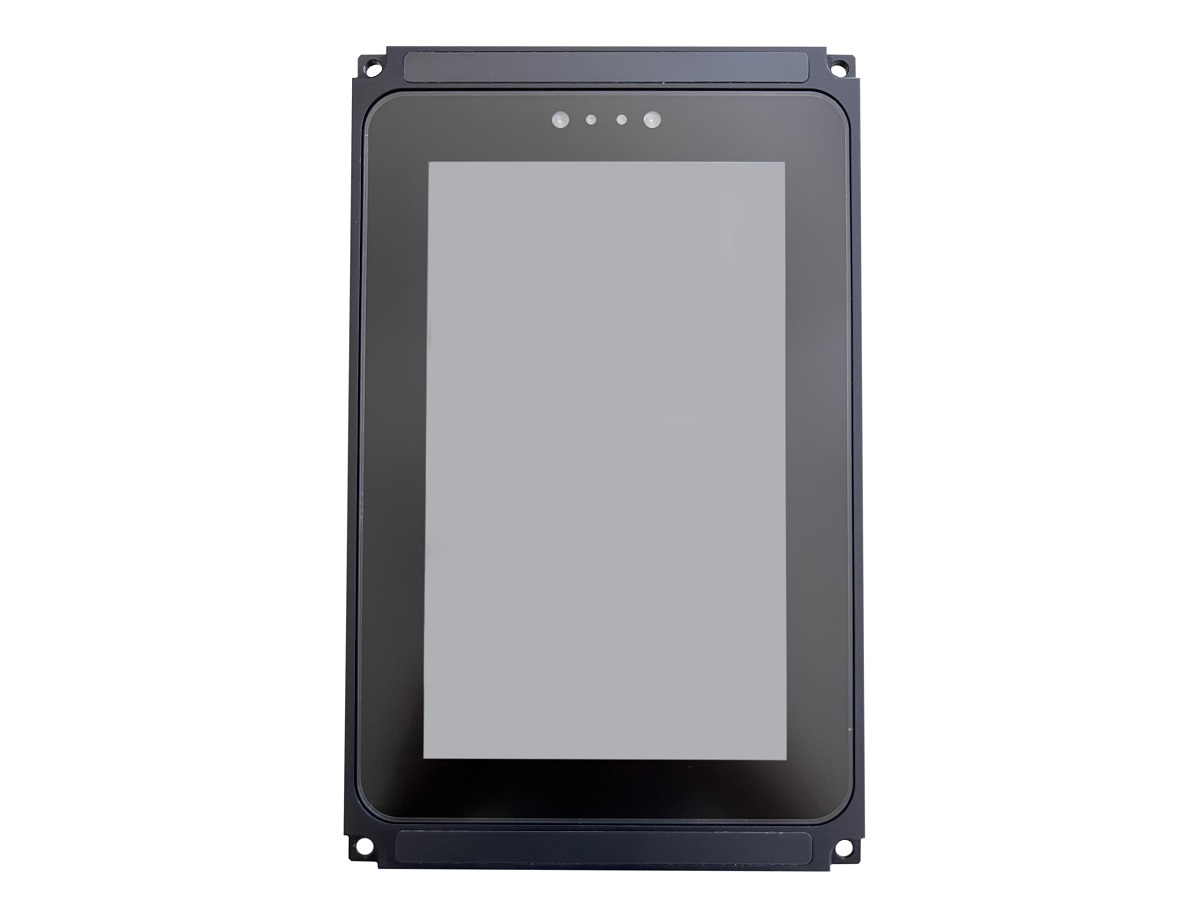

Display 1280×768 8 inch TFT with Projected Capacitive Multi-Touch (Full tempered glass) – Brightness: 1200 cd/m2 typ. – Contrast ratio: 1400:1 typ.
Internal Ports Section #1: 1 GB DDR3L Sdram – 8 GB eMMC memory – 256 Mbit QSPI Nor Flash – Section #2: 512 MB DDR3L Sdram – 8 GB eMMC memory – 256 Mbit QSPI Nor Flash – Interprocessor communication via PCIe differential bus – I2C multimaster interface for Touch Controller – Temperature sensors – RTC device – 1x I2S audio interface

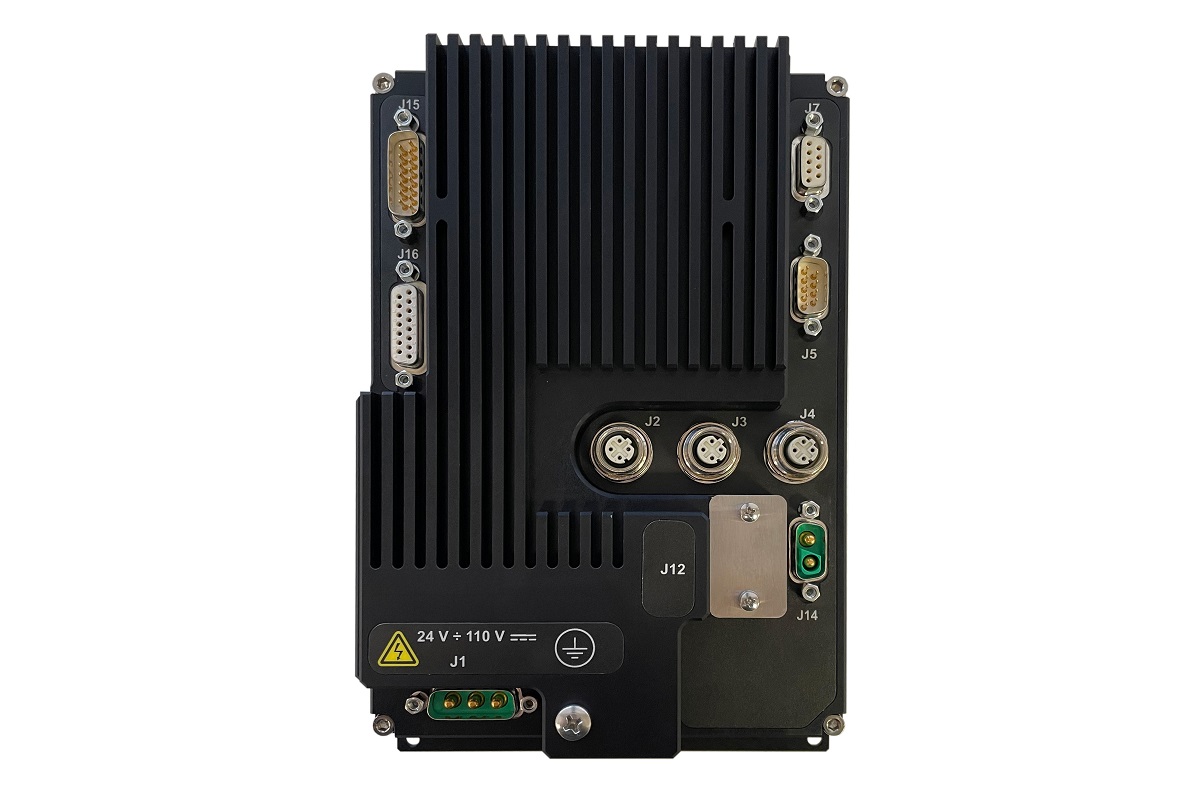

External Ports 3x Ethernet interfaces @ 10Base-T and 100Base-TX – 1x Optocoupled channel configured as RS-485 Half Duplex channel – 1x USB 2.0 (Device mode) – 5W RMS 8 Ohm speaker output – 2x Status RGB led – 2x Light sensor for brightness for manual/auto control – 4x Optoisolated nominal 24 Vdc÷110 Vdc digital inputs and 4x Isolated Relay Outputs DPDT contact form nominal +24 Vdc ÷ 110 Vdc – EMD MVB module (3/4 classes) with MQX 4.2.0 S.O. (optional module)
Envinronment OT4 class
IP Grade IP 65 Front – IP 50 Back
Power Supply Extended range: +16.8 Vdc ÷ +143 Vdc (S2 class)
Basic Software LINUX Kernel 4.1.23 with patch RT22 – QT 5.6 and GTK 3.16.6 and 2.24.28 graphic libraries
Compliance EN 50155:2017
Safety SIL 2
