| Product Name | ATX-K064-MMI-01-0 with Landscape orientation |

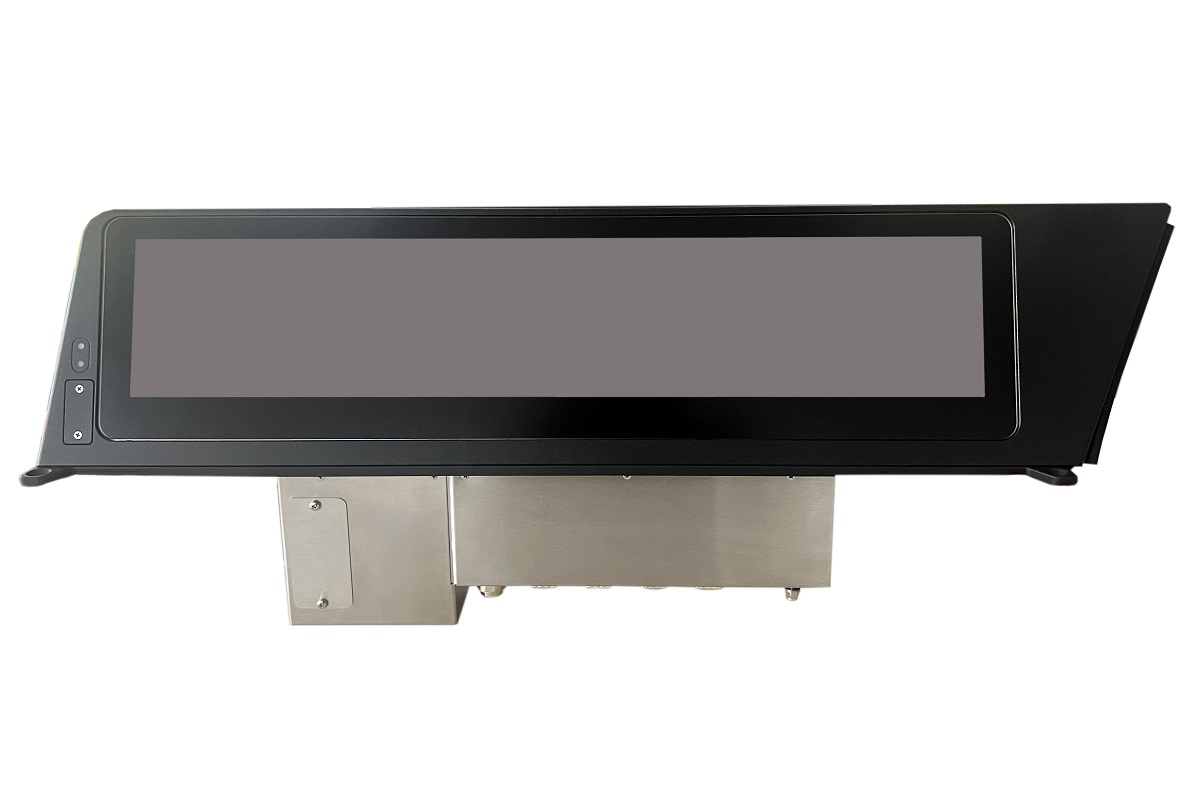

| Form Factor | The product is composed of two main parts, the first is the Display part and the second below is the Electronic Control box part A 6 mm thick plate will fix the product to the train desk. The Electronic Control box below will be under the train desk |
| Dimension | Front: 637 mm x 145 mm (includes metal fixing base) Front Panel depth: 27 mm Depth: 100 mm (The display part is tilted 108 degrees with respect to the fixing plane) – Electronic box: 322 mm x 109 mm. and depth: 52 mm |
| Rapid description | MMI – Man Machine Interface System |
| Processor | Single core ARM® Cortex™ A9— i.MX 6SoloX®— up to 800 MHZ |
| Display | 1920×360 19.2 inch TFT with Projected Capacitive Multi-Touch (Full tempered glass) – Brightness: 500 cd/m2 typ. – Contrast ratio: 700:1 typ. |
| Internal Ports | 1 GB DDR3L Sdram – 4 GB eMMC memory – 256 Mbit QSPI Nor Flash – 1 Mbit NVRAM – 4 GB removable SSD – 1xAC97 Audio Codec – Temperature sensors – RTC device |

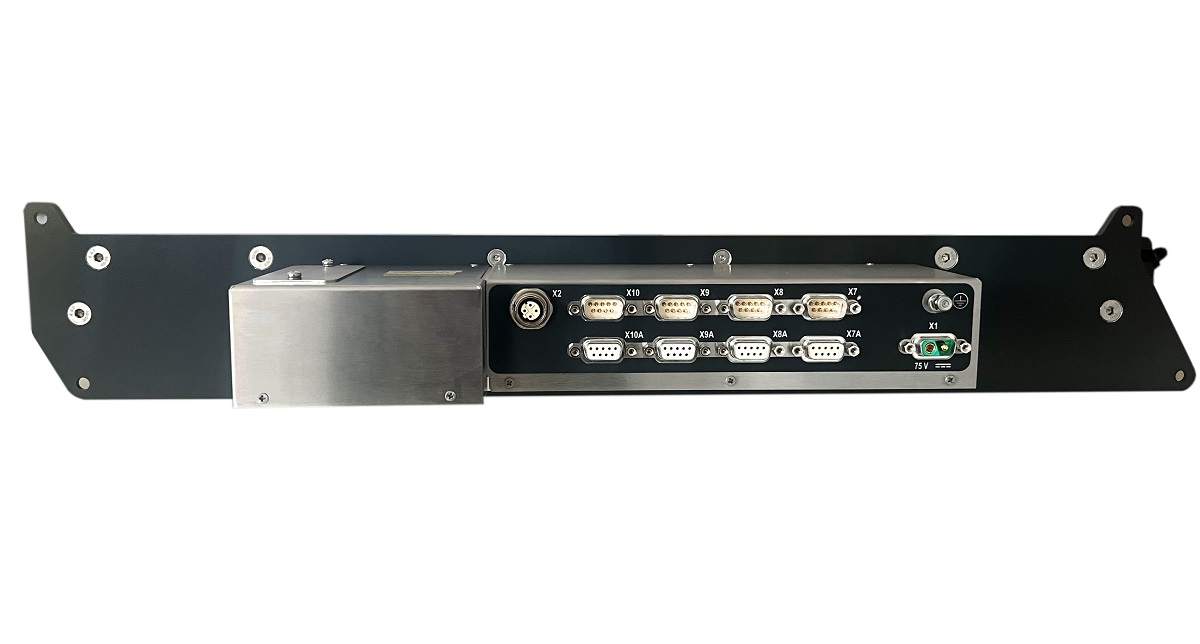

| External Ports | 1x Ethernet interface @ 10Base-T and 100Base-TX – 4x Optocoupled CAN bus channels – 1x USB 2.0 (Host mode) – 1x USB 2.0 (Device mode) – 5W RMS 8 Ohm speaker output – 2x Status RGB led – 1x Light sensor for brightness for manual/auto control – 5x configurable inputs |
| Envinronment | OT3 class |
| IP Grade | IP 65 Front – IP 4X Back |
| Power Supply | +45 Vdc ÷ +150 Vdc (S2 class) |
| Basic Software | LINUX Kernel 4.1 – QT 5.6, GTK2 2.24 and GTK3 3.18 graphic libraries |
| Compliance | EN 50155:2017 |
| Safety | SIL 0 |
