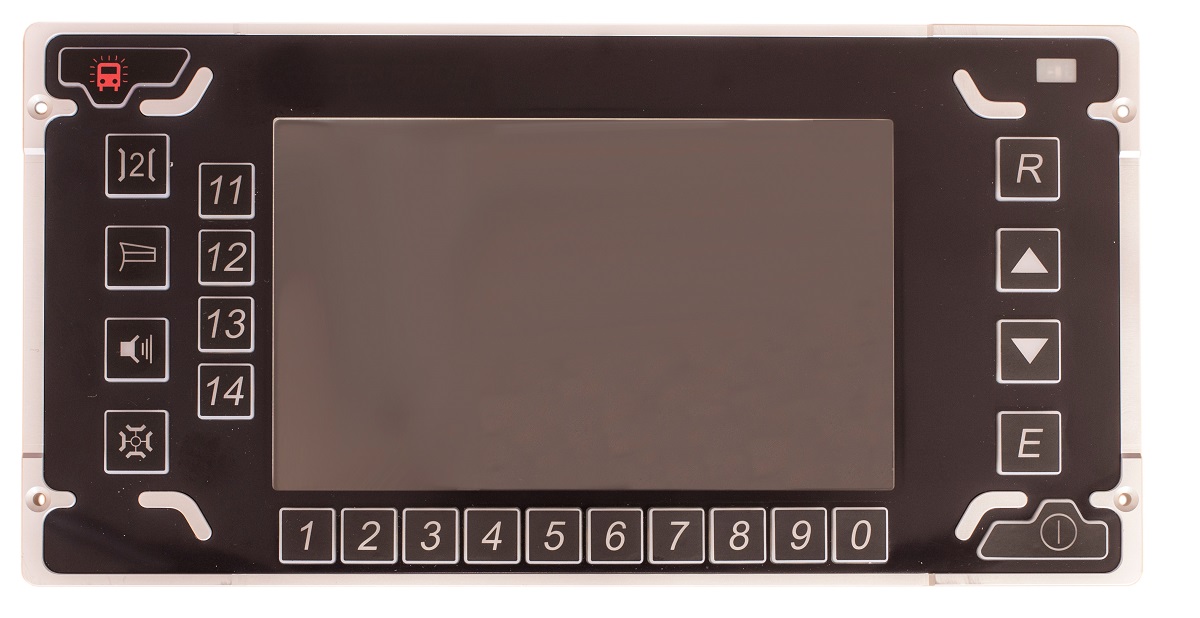

Click on the image to enlarge

Atenix's product

ATX-K068

MMI - Man Machine Interface for CAB Radio System 7"
Product Name ATX-K068-MMI-01-0
Form Factor Custom with Landscape orientation
Dimension Front dimensions: mm 274×138 – Back dimensions: mm 258×132 – Front panel depth: mm 9 – Depth: mm 45.3
Rapid description MMI – Man Machine Interface for CAB Radio System
Processor Single core ARM® Cortex™ A9— i.MX 6SoloX®— up to 800 MHZ
Display + Hard Keys 800×480 7 inch TFT with Silicone Keyboard with white LED backlighting – Brightness:  500 cd/m2 typ. – Contrast ratio: 600:1 typ.
Internal Ports 1 GB DDR3L Sdram – 4 GB eMMC memory – 256 Mbit QSPI Nor Flash – 1 Mbit NVRAM – 4 GB removable SSD – 1x I2S Audio Codec – Temperature sensors – RTC device with backup functions  – FPGA controller
External Ports 1x Ethernet interface @ 10Base-T and 100Base-TX – 1x Optocoupled channel configured as RS-422 Full Duplex channel – 1x USB 2.0 (Device mode) – 2x Analog Inputs – 1x Analog Output – 1x Optoidolated Input Enable Desk Key port – 1x Handset port with PTT and HOOK control input switches – 1x 8W RMS speaker output at 4 Ω load – 4x 6 mA @ +110 Vdc Optoisolated Inputs  – 4x 100 mA @ +110 Vdc Optoisolated Outputs ‐ 1x Ambiental Light sensor for brightness control manual/auto – 24x Hard Keys with backlight control
Envinronment T3 class
IP Grade IP 65 Front – IP 4X Back
Power Supply Extended range: +16.8 Vdc ÷ +143 Vdc (S2 class)
Basic Software LINUX Kernel 4.1.15 with patch RT18 – QT 5.6.1 and GTK 3.18.8 and 2.24.29 graphic libraries
Compliance EN 50155:2007
Safety SIL 0
