ATX-K065 10.4″

Safety MMI - Man Machine Safety Interface System - ETCS - ERTMS 10.4"
Product Name ATX-K065-MMI-06-0 – ATX-K065-MMI-09-0 – ATX-K065-MMI-19-0 – ATX-K065-MMI-29-0
Form Factor UIC612 with Landscape orientation
Dimension Front dimensions: 310×214 mm – Back dimensions: 280×205 mm – Depth: 46 mm (Touch version) – Front panel depth: 12 mm
Rapid description Safety MMI – Man Machine Safety Interface System – ETCS – ERTMS
Processor 2oo2 Safety Architecture – ™ i.MX6®—Quad ARM® Cortex™-A9 up to 1.0 GHZ (section #1) – Cyclone V SoC—Dual ARM® Cortex™-A9 up to 800 MHZ (section #2)
Display 640×480 10.4 inch TFT with 5-wire Resistive Touch – Brightness:  450 cd/m2 typ. – Contrast ratio: 700:1 typ. 1024×768 10.4 inch TFT wit 5-wire Resistive Touch – Brightness:  1300 cd/m2 typ. – Contrast ratio: 1000:1 typ. 1024×768 10.4 inch TFT wit Projected Capacitive Multi-Touch (Full tempered) – Brightness:   1300 cd/m2 typ. – Contrast ratio: 1000:1 typ.
Resistive Touch + Hard Keys Some product versions can install a UIC 612 keyboard with white and blue LED backlighting
Internal Ports Section #1: 1 GB DDR3L Sdram – 8 GB eMMC memory – 256 Mbit QSPI Nor Flash – Section #2: 512 MB DDR3L Sdram – 8 GB eMMC memory – 256 Mbit QSPI Nor Flash – Interprocessor communication via PCIe differential bus – I2C multimaster interface for Touch Controller – Temperature sensors – RTC device – 1x AC97 or I2S audio interface – I2C multimaster interface for Keys interface

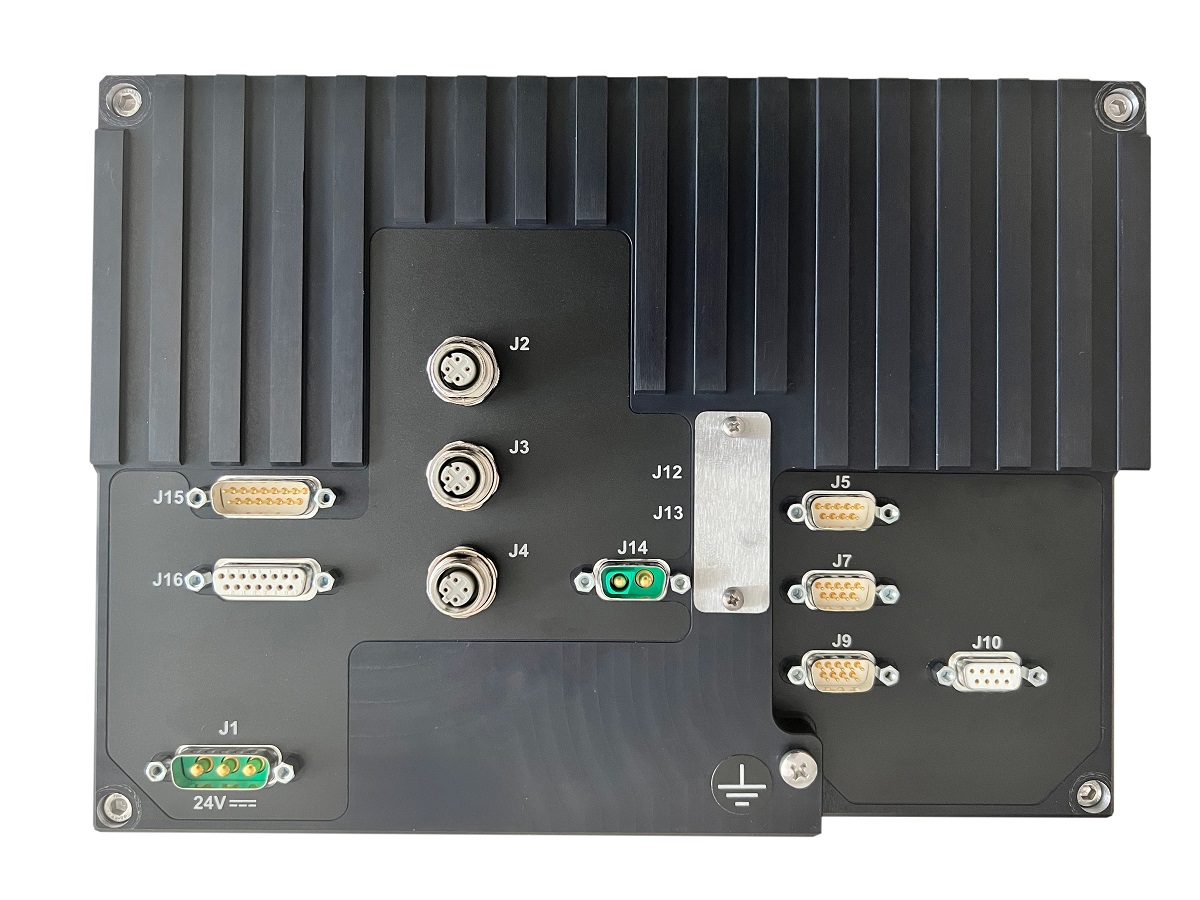

External Ports 3x Ethernet interfaces @ 10Base-T and 100Base-TX – 2x Optocoupled channel configured as RS-485 Half Duplex channel – 1x USB 2.0 (Device mode) – 5W RMS 8 Ohm speaker output – 2x Status RGB led – 1x Light sensor for brightness for manual/auto control – 4x Optoisolated nominal 24 Vdc÷110 Vdc digital inputs and 4x Isolated Relay Outputs DPDT contact form nominal 24 Vdc÷110 Vdc (optional module) – EMD MVB module with MQX 4.2.0 S.O. (optional module)
Envinronment T3 class
IP Grade IP 65 Front – IP 4X Back
Power Supply +16.8 Vdc ÷ +36 Vdc or +77 Vdc ÷ +137.5 Vdc (S2 class)
Basic Software LINUX Kernel 4.1.23 with patch RT22 – QT 5.6 and GTK 3.16.6 and 2.24.28 graphic libraries
Compliance EN 50155:2007
Safety SIL 2
